Hysun Containers
40 HC High Cube IICL 2 tripper Shipping Container
IICL 2 · High Cube · Multi-Trip
40ft HC IICL 2 Container
A premium High Cube container with IICL 2 certification—only two sea voyages, near-new condition. The extra 30 cm of interior height provides superior cargo capacity. Finished in sophisticated RAL 5010 deep blue, offering both exceptional durability and a distinguished professional appearance.
EXTERNAL LENGTH
40 ft 12,192 mm
EXTERNAL HEIGHT (HC)
9 ft 6 in 2,896 mm
INTERNAL CAPACITY
Approx. 76.4 m³ 2,698 cu ft
Typical Technical Specifications
Premium IICL quality. Superior cubic capacity.
Dimensions and Openings

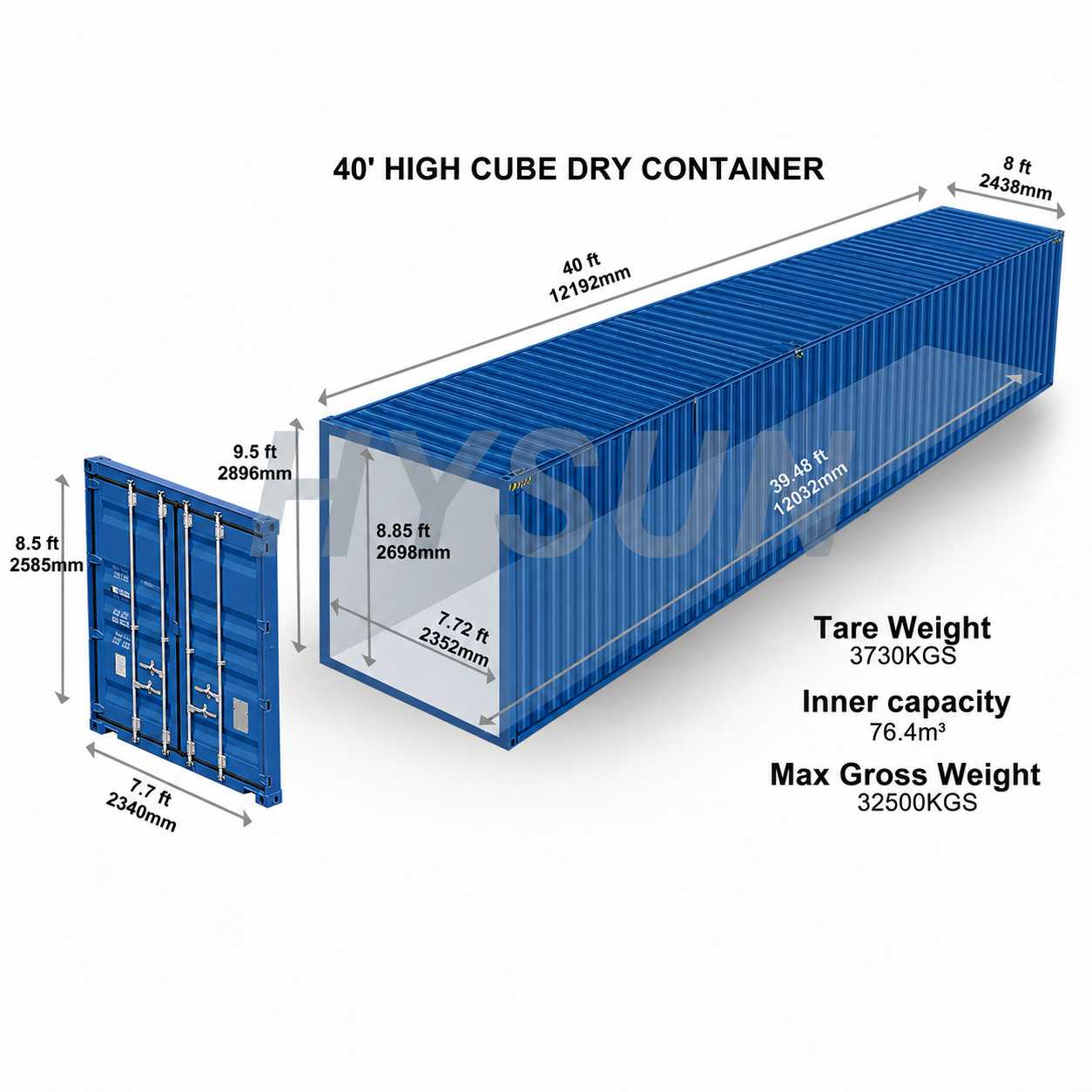

External: 12,192 × 2,438 × 2,896 mm (40ft × 8ft × 9ft 6in)[reference:3][reference:4]
Internal: Approx. 12,032 × 2,352 × 2,698 mm[reference:5][reference:6][reference:7]
Door Opening: Approx. 2,340 × 2,585 mm[reference:8][reference:9]
Internal Capacity: Approx. 76.4 m³ / 2,698 cu ft[reference:10][reference:11][reference:12]
Weight and IICL Certification
Maximum Gross Weight: 32,500 kg / 71,650 lbs[reference:13][reference:14]
Tare Weight: Approx. 3,730–3,940 kg / 8,223–8,686 lbs[reference:15][reference:16]
Maximum Payload: Approx. 28,560–28,800 kg / 62,965–63,493 lbs[reference:17][reference:18]
IICL Grade: IICL 2 (2 Trips) – Near-new condition
Color: RAL 5010 – Gentian Blue (Deep Blue)
Typical Applications
● International shipping and freight transport
● Premium storage for machinery, equipment and bulk goods
● Logistics operations requiring high-quality IICL containers
● Industrial storage and project cargo
Dimensions and capacity shown above are typical reference values for a 40ft High Cube IICL 2 container. Actual dimensions, tare weight, payload, maximum gross weight, and IICL certification status must be confirmed against the individual container, inspection report, approved technical drawing and CSC plate.
Technical Specifications
40ft HC IICL 2 Container
IICL 2 · High Cube · RAL 5010 Deep Blue · CSC Certified
A premium 40ft High Cube container with IICL 2 certification, having completed only two sea voyages. Maintains near-new appearance and structural integrity at a fraction of the cost of a brand new unit[reference:19]. The High Cube (HC) configuration provides an additional 30 cm of interior height compared to standard containers, offering approximately 76.4 m³ of cubic capacity[reference:20]. Finished in sophisticated RAL 5010 gentian blue—a deep, rich blue that conveys professionalism and distinction[reference:21]. Built from high-strength Corten steel with a marine-grade plywood floor, fully CSC certified for international shipping.
General
● Type: 40ft High Cube Dry Container (40HC)
● Condition: IICL 2 – 2 Trips (Near-new condition)[reference:22]
● ISO Code: 45G1
● Certification: ISO 1496-1 · CSC Plated · IICL Grade 2
● Color: RAL 5010 – Gentian Blue (Deep Blue)
● Cosmetic Condition: Near-new, minimal cosmetic wear from two voyages
Typical Dimensions and Capacity
● External: 12,192 × 2,438 × 2,896 mm (40ft × 8ft × 9ft 6in)[reference:23][reference:24]
● Internal: Approx. 12,032 × 2,352 × 2,698 mm[reference:25][reference:26]
● Door Opening: Approx. 2,340 × 2,585 mm[reference:27][reference:28]
● Internal Capacity: Approx. 76.4 CU.M / 2,698 CU.FT[reference:29][reference:30]
Reference Weight
● Reference Maximum Gross: 32,500 kg / 71,650 lbs[reference:31][reference:32]
● Reference Tare: Approx. 3,730–3,940 kg / 8,223–8,686 lbs[reference:33][reference:34]
● Reference Payload: Approx. 28,560–28,800 kg / 62,965–63,493 lbs[reference:35][reference:36]
IICL 2 Features
● IICL 2 Certification: Only 2 sea voyages—near-new condition with minimal wear[reference:37]
● RAL 5010 Finish: Premium deep blue gentian color—professional, distinguished, weather-resistant[reference:38]
● High Cube Advantage: Extra 30 cm height for superior cubic capacity—ideal for bulky cargo[reference:39]
● Construction: Corten steel with 28 mm marine-grade plywood flooring
Applications
● International Shipping and Freight Transport
● Premium Storage for Machinery, Equipment and Bulk Goods
● Logistics Operations Requiring High-Quality IICL Containers
● Industrial Storage and Project Cargo
Photographs and specifications are representative. Actual condition, markings, dimensions, weights and CSC validity must be confirmed for the individual container.
Product description
40ft HC IICL 2 Reference Specifications
| External Dimensions (L × W × H) mm |
12,192 × 2,438 × 2,896 mm (40ft × 8ft × 9ft 6in)[reference:40][reference:41] |
Internal Dimensions (L × W × H) mm |
Approx. 12,032 × 2,352 × 2,698 mm[reference:42][reference:43] |
| Door Opening (W × H) mm |
Approx. 2,340 × 2,585 mm[reference:44][reference:45] | Internal Capacity | Approx. 76.4 CU.M / 2,698 CU.FT[reference:46][reference:47] |
| Reference Tare Weight | Approx. 3,730–3,940 kg / 8,223–8,686 lbs[reference:48][reference:49] | Reference Max Gross | 32,500 kg / 71,650 lbs[reference:50][reference:51] |
| Reference Payload | Approx. 28,560–28,800 kg / 62,965–63,493 lbs[reference:52][reference:53] | IICL Grade | IICL 2 (2 Trips) |
| Color | RAL 5010 – Gentian Blue (Deep Blue)[reference:54] | Certification | ISO 1496-1 · CSC Plated |
Reference values only. Actual tare, payload, maximum gross weight, IICL grade and CSC status must be verified from the individual container's CSC plate and inspection report.
Materials List
Structural Overview – IICL 2 Container
| S/N | Component | IICL 2 Condition Requirement |
|---|---|---|
| 1 | Corner Castings | Serviceable for normal lifting, handling and stacking operations |
| 2 | Side and End Panels | Near-new condition; minimal cosmetic wear from 2 voyages |
| 3 | Roof Panel | Watertight with no leakage; excellent condition |
| 4 | Cargo Doors | Operational; capable of closing and securing correctly |
| 5 | Door Seals | Serviceable for wind and watertight protection |
| 6 | Locking Gear | Locking bars, handles and retainers remain operational |
| 7 | Cargo Floor | 28 mm marine-grade plywood; near-new condition |
| 8 | Paint Finish | RAL 5010 deep blue; paint system intact and corrosion-resistant |
| 9 | Understructure | Cross members and supporting structure operationally serviceable |
| 10 | IICL / CSC Compliance | Valid CSC plate and IICL 2 certification |
This table describes general IICL 2 container condition expectations. Final acceptance is subject to inspection of the individual container.
Certificate
FAQ
What does IICL 2 mean?
IICL (International Institute of Container Lessors) is the globally recognized standard for container inspection and quality grading[reference:60]. IICL 2 indicates the container has completed only two sea voyages and maintains near-new appearance and structural integrity—an excellent balance of quality and value[reference:61].
What is the color RAL 5010?
RAL 5010 is known as "Gentian Blue"—a deep, rich, and intensely saturated blue that conveys professionalism and distinction[reference:62]. It is highly weather-resistant, maintains its vibrant appearance over time, and gives the container a modern, premium look suitable for any environment.
What is the difference between IICL 2 and brand new?
An IICL 2 container has completed only two sea voyages and maintains nearly identical appearance and structure to a brand new unit[reference:63]. The key difference is significant cost savings—you get premium quality at a fraction of the price of a new container[reference:64].
What certifications does an IICL 2 container have?
IICL 2 containers are fully CSC plated and ISO 1496-1 certified for international shipping. Each unit undergoes rigorous inspection to meet IICL industry standards[reference:65].
What are typical applications for an IICL 2 container?
IICL 2 containers are ideal for international shipping, premium storage of machinery and equipment, logistics operations requiring high-quality containers, industrial storage, and project cargo. The High Cube design provides superior cubic capacity for bulky goods.
