HYSUN CONTAINER
Hysun Containers
20GP-20ft general container Brand New Blue Standard Dry Shipping Container
Built for dependable performance
Clear, internationally recognized specifications in both imperial and metric units.
New condition. Proven standards. Flexible use.
One container. Multiple possibilities.
Technical Specifications
20ft GP Brand New Container
Factory New · ISO Standard Dry Freight Container
A reliable, never-used container designed for international shipping, secure storage, and long-term commercial use.
General
- Type: 20ft General Purpose Dry Container
- Condition: Brand New (Factory New, Never Used)
- Standard: ISO Dry Freight Container
- Doors: Double Rear Doors with High-Performance Rubber Seals
- Certification: ISO 1496-1 and CSC Compliant
- Weather Protection: Wind and Watertight

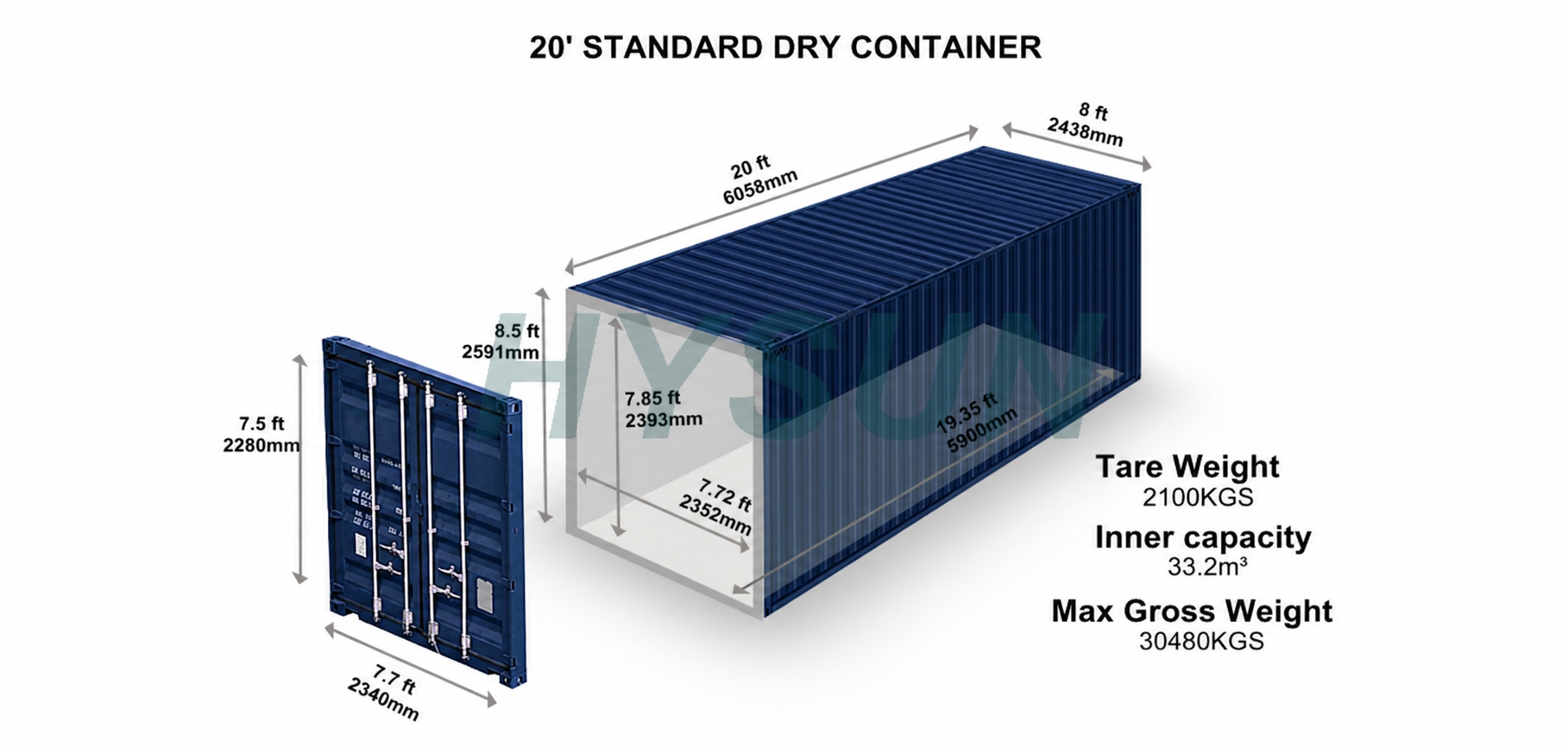

Dimensions and Capacity
- External (L × W × H): 20' × 8' × 8'6" (6.058 × 2.438 × 2.591 m)
- Internal (L × W × H): 19'4" × 7'8" × 7'10" (5.898 × 2.352 × 2.393 m)
- Door Opening (W × H): 7'8" × 7'6" (2.340 × 2.280 m)
- Cubic Capacity: 1,172 cu ft (33.2 m³)
Weight
- Maximum Gross Weight: 52,910 lbs (24,000 kg)
- Tare Weight: 4,850–5,070 lbs (2,200–2,300 kg)
- Payload Capacity: 47,840–48,060 lbs (21,700–21,800 kg)
Premium Construction
- Walls and Roof: 1.6–2.0 mm Corrosion-Resistant Corten Steel
- Floor: 28 mm Marine-Grade Plywood
- Corner Castings: ISO Standard Corner Fittings
- Paint System: Marine-Grade Epoxy Coating with UV Protection
- Lashing Points: Heavy-Duty Internal Lashing Rings
Applications
- International Shipping
- Secure Storage
- Construction Sites
- Equipment Storage
- Container Conversion Projects
Specifications are typical and may vary slightly by manufacturer. Final specifications are subject to the approved technical drawing and CSC plate.
Product description
|
外部尺寸
（长 x 宽 x 高）毫米 |
6058×2438×2591毫米 |
内部尺寸
（长 x 宽 x 高）毫米 |
5900×2352×2393毫米 |
|
门尺寸
（长 x 高）毫米 |
/ |
内部容量
|
33.2 立方米
|
|
皮重
|
2185公斤 |
最大毛重
|
30480公斤 |

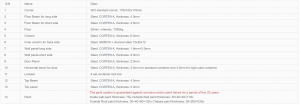

Materials List
| S/N | Name | Description |
|---|---|---|
| 1 | Corner | ISO standard corner, 178×162×118mm |
| 2 | Floor Beam for Long Side | Steel: CORTEN A, thickness: 4.0mm |
| 3 | Floor Beam for Short Side | Steel: CORTEN A, thickness: 4.5mm |
| 4 | Floor | 28mm, intensity: 7260kg |
| 5 | Column | Steel: CORTEN A, thickness: 6.0mm |
| 6 | Inner Column for Back Side | Steel: SM50YA + channel steel 13×40×12 |
| 7 | Wall Panel – Long Side | Steel: CORTEN A, thickness: 1.6mm + 2.0mm |
| 8 | Wall Panel – Short Side | Steel: CORTEN A, thickness: 2.0mm |
| 9 | Door Panel | Steel: CORTEN A, thickness: 2.0mm |
| 10 | Horizontal Beam for Door | Steel: CORTEN A, thickness: 3.0mm for standard container and 4.0mm for high cube container |
| 11 | Lockset | 4 set container lock bar |
| 12 | Top Beam | Steel: CORTEN A, thickness: 4.0mm |
| 13 | Top Panel | Steel: CORTEN A, thickness: 2.0mm |
Certificate
FAQ
What is the typical delivery time?
Lead time depends on quantity and availability. Orders below 50 units typically require 3–4 weeks. Please contact us for larger-volume schedules.
Can I use the container for an SOC shipment?
Yes. If you have cargo in China, you can collect our container, load your goods and export it as a Shipper's Own Container. Our team can support the SOC process.
Which container sizes are available?
We supply standard and high-cube containers from 10ft to 60ft, including 20GP, 20HC, 40GP, 40HC, 45HC and selected customized sizes.
How are complete containers transported?
Complete containers are normally transported by container vessel. One-way and SOC arrangements may be available depending on the route.
What certifications and payment terms are available?
ISO containers can be supplied with a valid CSC plate. Standard terms are 40% before production and 60% before delivery, subject to order confirmation.
