HYSUN CONTAINER
Hysun Containers
40ft GP HC Used Shipping Reefer Container refridgerated container for food
Used · Refrigerated · High Cube
40ft HC Used Reefer Container
A temperature-controlled 40ft High Cube refrigerated container with integrated cooling machinery. Built for the safe transport of perishable goods, pharmaceuticals, and temperature-sensitive cargo across global supply chains.
EXTERNAL LENGTH
40 ft 12,192 mm
EXTERNAL HEIGHT (HC)
9 ft 6 in 2,896 mm
INTERNAL CAPACITY
Approx. 67.6 m³ 2,387 cu ft
Typical Technical Specifications
Precision cold chain. Maximum cargo protection.
Dimensions and Openings
External: 12,192 × 2,438 × 2,896 mm (40ft × 8ft × 9ft 6in)[reference:2][reference:3]
Internal: Approx. 11,588 × 2,290 × 2,548 mm[reference:4][reference:5]
Door Opening: Approx. 2,294 × 2,569 mm[reference:6]
Internal Capacity: Approx. 67.6 m³ / 2,387 ft³[reference:7]
Weight and Refrigeration
Maximum Gross Weight: Refer to the individual CSC plate[reference:8]
Tare Weight: Refer to the individual CSC plate[reference:9]
Maximum Payload: Maximum gross weight minus tare weight
Refrigeration Unit: Carrier / Thermo King (subject to unit)[reference:10]
Temperature Range: Subject to the individual unit and machinery[reference:11]
Typical Applications
❄ Perishable food and beverage transport
❄ Pharmaceutical and healthcare cold chain logistics
❄ Temperature-controlled storage and warehousing
❄ Flowers, plants, and other sensitive cargo
Dimensions and capacity shown above are typical reference values for a 40ft High Cube Reefer container. Actual dimensions, tare weight, payload, maximum gross weight, refrigeration machinery, condition and CSC validity must be confirmed against the individual container, inspection report, approved technical drawing and CSC plate.
Technical Specifications
40ft HC Used Reefer Container
Used · Refrigerated · High Cube · CSC Certified
A used 40ft High Cube refrigerated container featuring integrated refrigeration machinery for precise temperature-controlled transport and storage. The High Cube (HC) configuration provides an additional 30 cm of interior height compared to standard containers, offering improved airflow and higher pallet-loading capacity[reference:12][reference:13]. Equipped with insulated walls, T-bar flooring, and interior aluminum scuff lining[reference:14]. Designed for perishable goods, pharmaceuticals, and temperature-sensitive cargo. Fully CSC certified for international shipping.
General
❄ Type: 40ft High Cube Refrigerated Container (Reefer)
❄ Condition: Used – Refurbished / Serviceable
❄ Certification: CSC Plated · Valid for International Shipping
❄ Door Configuration: Lockable double doors at the end[reference:15]
❄ Cosmetic Condition: Normal dents, scratches, surface rust and cosmetic wear may remain
Typical Dimensions and Capacity
❄ External: 12,192 × 2,438 × 2,896 mm (40ft × 8ft × 9ft 6in)[reference:16]
❄ Internal: Approx. 11,588 × 2,290 × 2,548 mm[reference:17]
❄ Door Opening: Approx. 2,294 × 2,569 mm[reference:18]
❄ Internal Capacity: Approx. 67.6 m³ / 2,387 ft³[reference:19]
Reference Weight
❄ Reference Maximum Gross: Refer to the individual CSC plate[reference:20]
❄ Reference Tare: Refer to the individual CSC plate (varies by machinery type)[reference:21]
❄ Reference Payload: Maximum gross weight minus tare weight
Reefer Features
❄ Insulated Construction: Thermally insulated walls, roof and floor for temperature retention[reference:22]
❄ Refrigeration Unit: Carrier or Thermo King machinery (subject to unit)[reference:23]
❄ Interior Lining: Aluminum scuff lining for durability and easy cleaning[reference:24]
❄ Flooring: T-bar flooring for optimal air circulation[reference:25]
Applications
❄ Perishable Food and Beverage Transport[reference:26]
❄ Pharmaceutical and Healthcare Cold Chain Logistics[reference:27]
❄ Temperature-Controlled Storage and Warehousing[reference:28]
❄ Flowers, Plants, and Sensitive Cargo[reference:29]
Photographs and specifications are representative. Actual condition, markings, dimensions, weights, refrigeration machinery and CSC validity must be confirmed for the individual container.
Product description
40ft HC Reefer Reference Specifications
| External Dimensions (L × W × H) mm |
12,192 × 2,438 × 2,896 mm (40ft × 8ft × 9ft 6in)[reference:30] |
Internal Dimensions (L × W × H) mm |
Approx. 11,588 × 2,290 × 2,548 mm[reference:31] |
| Door Opening (W × H) mm |
Approx. 2,294 × 2,569 mm[reference:32] | Internal Capacity | Approx. 67.6 m³ / 2,387 ft³[reference:33] |
| Reference Tare Weight | Refer to individual CSC plate[reference:34] | Reference Max Gross | Refer to individual CSC plate[reference:35] |
| Reference Payload | Max gross weight minus tare weight | Refrigeration Unit | Carrier / Thermo King (subject to unit)[reference:36] |
| Temperature Range | Subject to individual unit[reference:37] | Certification | CSC Plated |
Reference values only. Actual tare, payload, maximum gross weight, refrigeration machinery and CSC status must be verified from the individual container's CSC plate.

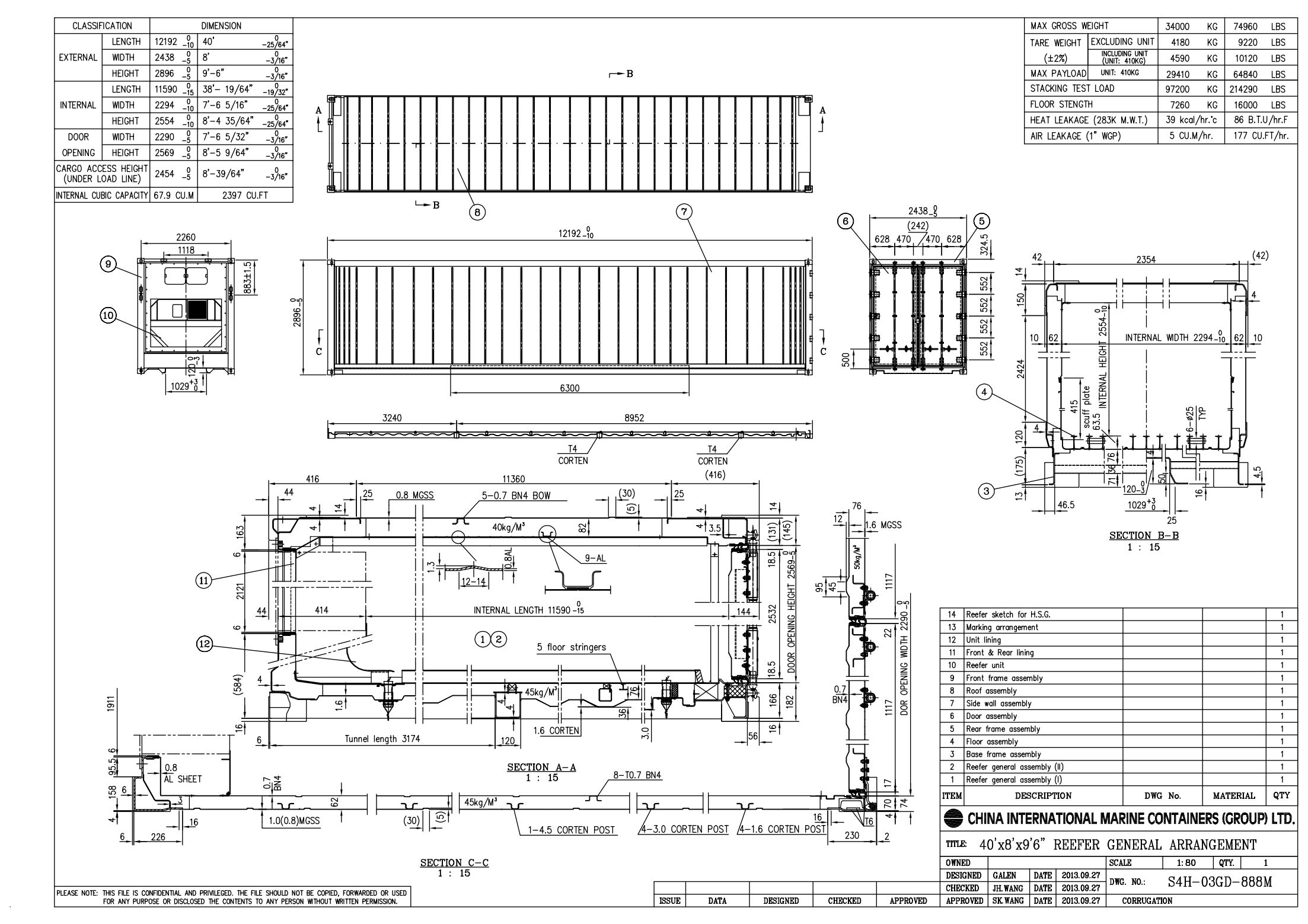

Materials List
Structural Overview – Reefer Container
| S/N | Component | Reefer Condition Requirement |
|---|---|---|
| 1 | Corner Castings | Serviceable for normal lifting, handling and stacking operations |
| 2 | Insulated Walls & Roof | Thermally intact with no active leakage or damage[reference:42] |
| 3 | Refrigeration Unit | Operational; Carrier / Thermo King (subject to unit)[reference:43] |
| 4 | T-Bar Flooring | Serviceable for cargo; allows proper air circulation[reference:44] |
| 5 | Door Seals & Gaskets | Serviceable for temperature retention and weather protection |
| 6 | Cargo Doors | Operational and capable of closing and securing correctly[reference:45] |
| 7 | Locking Gear | Locking bars, handles and retainers remain operational |
| 8 | Interior Scuff Lining | Aluminum lining serviceable for cargo protection[reference:46] |
| 9 | Understructure | Cross members and supporting structure operationally serviceable |
| 10 | CSC / Reefer Compliance | Valid CSC plate and refrigeration system operational[reference:47] |
This table describes general reefer container condition expectations. Final acceptance is subject to inspection of the individual container.
Certificate
FAQ
❄ What is a reefer container?
A reefer (refrigerated) container is a temperature-controlled shipping container with an integrated refrigeration unit. It is designed to transport perishable goods, pharmaceuticals, and other temperature-sensitive cargo at precise, consistent temperatures[reference:48].
❄ What temperature range can a reefer maintain?
Temperature range varies by refrigeration unit and configuration. Typical ranges extend from approximately -30°C to +30°C (-22°F to +86°F)[reference:49]. Specific temperature capability must be confirmed against the individual unit[reference:50].
❄ What is the difference between HC reefer and standard reefer?
A High Cube (HC) reefer is 30 cm (1 foot) taller than a standard reefer, providing additional interior height for improved airflow, better pallet loading, and greater cubic capacity[reference:51][reference:52].
❄ Can a used reefer be used for international shipping?
Yes, provided it carries a valid CSC plate and the refrigeration unit is operational. CSC certification confirms the container meets international standards for safe shipping[reference:53].
❄ What are typical applications for a reefer container?
Reefers are used for transporting perishable food and beverages[reference:54], pharmaceuticals and healthcare products[reference:55], flowers and plants[reference:56], and any temperature-sensitive cargo requiring precise cold chain management.
