Hysun Containers

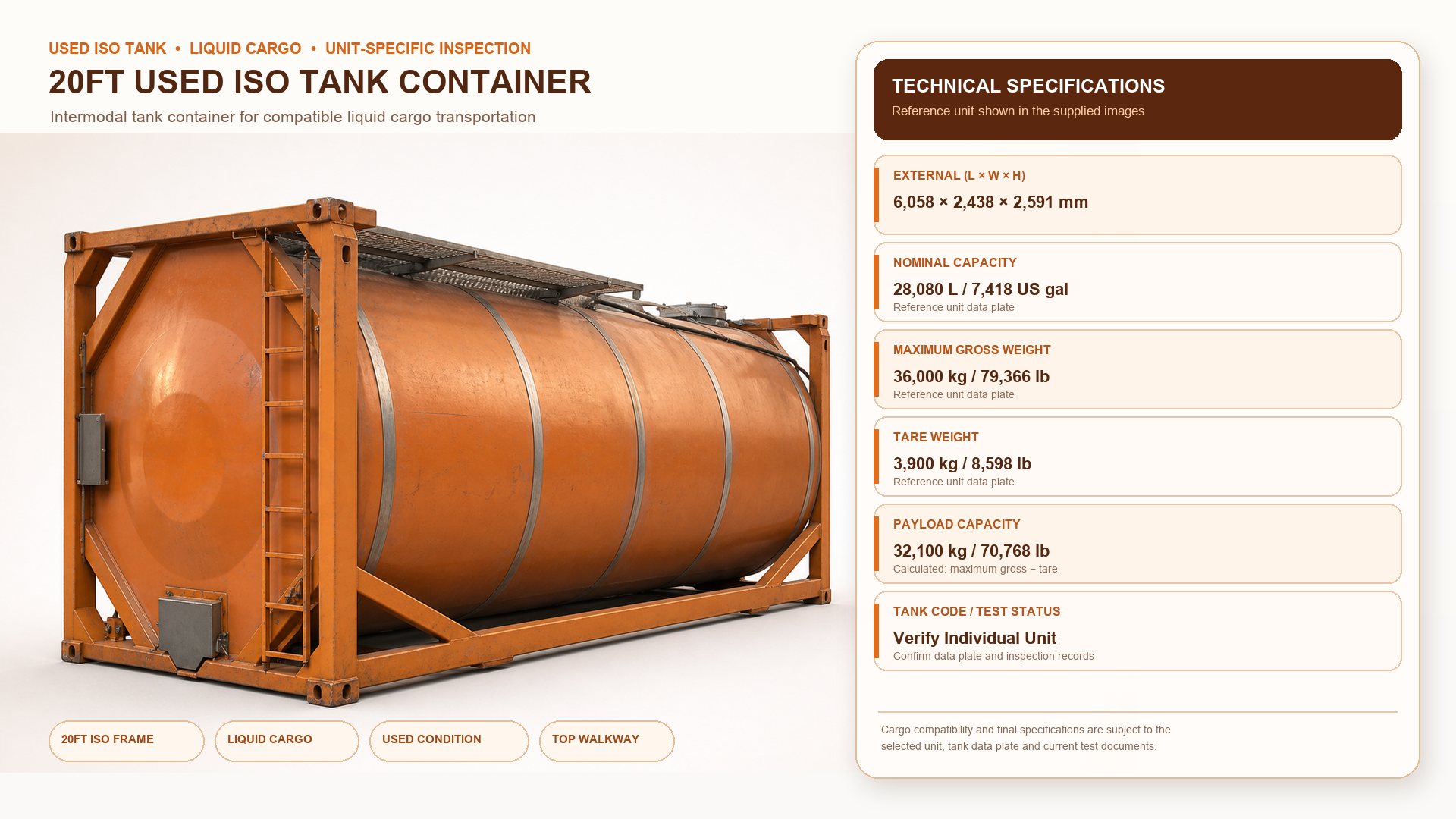

20ft Tank New Used Shipping Container
Overview
Essential details
| Type: | UN Portable Tank |
|
Nominal capacity (L):
|
28331
|
| Measured capacity: | 28311 L at 20°C |
| Color: | Beige/Red/Blue/Grey Customized |
| Material: | SANS 50028-7(2005):1.4402 C<=0.03% |
| Logo: | Available |
| Price: | Discussed |
| Length (feet): | 20' |
| Dimensions: | 6058 x 2550 x 2743 mm |
| Brand Name: | Hysun |
| Product Keywords: | 20ft frame tank container |
| Port: | Shanghai/Qingdao/Ningbo/Shanghai |
| Standard: | ISO9001 Standard |
| Quality: | Cargo-worthy Sea Worthy Standard |
| Certification: | ISO9001 |
Product description
| 28.3 cubic T11 tank container | |
| Type: |
UN Portable Tank
|
|
Dimensions :
|
6058 x 2550 x 2743 mm
|
|
Capacity (L):
|
28331
|
|
Tare Weight (Kg):
|
3900
|
|
Max Gross Weight (Kg):
|
36000
|
|
M.A.W.P. (Bar):
|
4.0
|
|
Test Pressure (Bar):
|
6.0
|
|
Design Temp (C):
|
-40 to 130
|
|
Shell Material:
|
SANS50028-7 1.4402
|
|
Shell Thickness (mm):
|
6 EMS
|
|
Heads Material:
|
SANS50028-7 1.4402
|
|
Model :
|
28.3FSTD
|
|
ISO size/type code :
|
2MT6
|
CHARACTERISTICS
|
S/N
|
Name
|
Desc
|
|
1
|
GENERAL DRAWING N° :
|
CX12-28.3GA-T11-00.A
|
|
2
|
Design temperature : | -40 ~ 130 °C |
|
3
|
Design pressure :
|
4 bar
|
|
4
|
External design pressure :
|
0.41 bar
|
|
5
|
ADR/RID calc. pressure : |
6 bar
|
|
6
|
Frame : |
SPA-H or equivalent
|
|
7
|
Tank Shell :
|
SANS 50028-7(2005):1.4402 C<=0.03%
|
|
8
|
Tank Heads :
|
SANS 50028-7(2005):1.4402 C<=0.03%
|
|
9
|
External diameter :
|
2525 mm
|
|
10
|
Number of compartments :
|
1
|
|
11
|
Number of baffles :
|
None
|
|
12
|
Shell Nominal :
|
4.4 mm Minimum : 4.18 mm
|
|
13
|
Heads Nominal :
|
4.65 mm Minimum : 4.45 mm
|
|
14
|
External tank area :
|
54 m² |
Packaging & delivery
Transport and ship with SOC style overworld
(SOC: Shipper own container)
CN:30+ports US:35+ports EU：20+ports
Applications or special features
Tank containers are used in various applications for transporting liquid or gas cargoes. They are known for their good sealing, safety, and ease of transportation and operation. Here are some common scenarios where tank containers are used:
1. Chemical transportation:
Tank containers are commonly used for transporting liquid chemicals, chemical products, and organic solvents. The tanks are often lined with special coatings to ensure the safe transport of cargo.
2. Oil and petrochemical industry:
Tank containers are widely used for transporting petroleum and petrochemical products, including crude oil, petroleum-based products, and liquefied natural gas. These cargoes often have high hazards, and tank containers ensure their safe transport due to their sealing and safety features.
3. Pharmaceutical and biotechnology industry:
Tank containers play a significant role in the transportation of pharmaceutical products, biologics, and vaccines. These cargoes require specific environmental conditions and temperature control, which is facilitated by tank containers equipped with temperature control systems.
It is important to adhere to relevant laws, regulations, and transportation standards when using tank containers to ensure the safety of the cargo and environmental sustainability. Additionally, regular maintenance and inspections are necessary to ensure proper operation and longevity of the tank containers.
Production line
Our factory promotes lean production activities in an all-round way, opening the first step of forklift-free transportation and closing the risk of air and ground transportation injury in workshop, also creating a series of lean improvement achievements such as streamlined production of container steel parts etc.… It is known as a “cost-free, cost effective” model factory for lean production
Output
Every 3 mins to get a container from automatic production line.
Industrial Storage is Easy With Containers
Industrial Equipment Storage is perfectly suited for the Shipping Containers. With a marketplace full of easy add-on products that
make it quick and easy to adapt.
Building a Home with Shipping Containers
One of the most popular applications these days is to build your dream home with re-purposed Shipping Containers. Save time and
money with these highly adaptable units.
Certificate
FAQ
Q: What about delivery date?
A: This is basis on the quantity. For order less than 50 units, shipment date:3-4 weeks. For large quantity, pls check with us.
Q: If we have cargo in China, I want order one container to load them, how to operate it?
A: If you have cargo in China, you only pick our container up instead of shipping company's container, and then load your goods, and arranging clearance custom, and export it like normally do. It's called SOC container. We have rich experience in handling it.
Q: What size of container can you provide ?
A: We provide10'GP,10'HC, 20'GP, 20'HC, 40'GP, 40'HC, 45'HC and 53'HC, 60’HC ISO shipping container. Also customized size is acceptable.
Q: What is your terms of packing?
A: It is transporting complete container by container ship.
Q: What is your terms of payment?
A: T/T 40% down payment before production and T/T 60% balance before delivery. For big order, pls contact us to negations.
Q: What certificate can you provide us ?
A: We provide the CSC certificate of ISO shipping container.
