20ft Flat Rack Brand New Flat Rack Container
Factory New · Collapsible Ends · Special Cargo Solution
20ft Brand New Flat Rack Container
A reinforced open-sided platform built for heavy machinery, industrial equipment and cargo exceeding standard container width or height. Upright end walls support normal flat-rack operation and fold down for empty repositioning or suitable over-length cargo arrangements.
NOMINAL LENGTH
20 ft 6,058 mm
USABLE LENGTH — MIN.
5,638 mm
LOADING ACCESS
Open Sides & Top
TECHNICAL OVERVIEW
Engineered for demanding cargo
Typical 22P3 Geometry
ISO Envelope: 6,058 × 2,438 × 2,591 mm
Usable Length: Approx. 5,638 mm minimum
Floor Width: Approx. 2,438 mm
Usable Height: Approx. 2,233 mm
Construction and Rating
End Walls: Upright, collapsible steel assemblies
Platform: Reinforced steel base with timber deck
Securing: Heavy-duty recessed lashing points
Weight Ratings: Approved drawing and CSC plate
WHY THIS FLAT RACK
Open access. Structural strength. Flexible handling.
01 · ACCESS
Top and Side Loading
Suitable for crane, forklift and specialized lifting operations.
02 · FLEXIBILITY
Collapsible End Walls
End structures fold down for efficient empty repositioning.
03 · SECURING
Multiple Lashing Points
Supports engineered cargo securing for heavy and irregular loads.
Ideal Applications
Heavy Machinery · Industrial Equipment · Cable Reels · Construction Vehicles · Steel Structures · Oversized Cargo
Typical dimensions are reference values. Final dimensions, end-wall design, maximum gross weight, tare, payload, lashing ratings and shipping suitability are subject to the approved technical drawing, carrier acceptance and CSC plate.

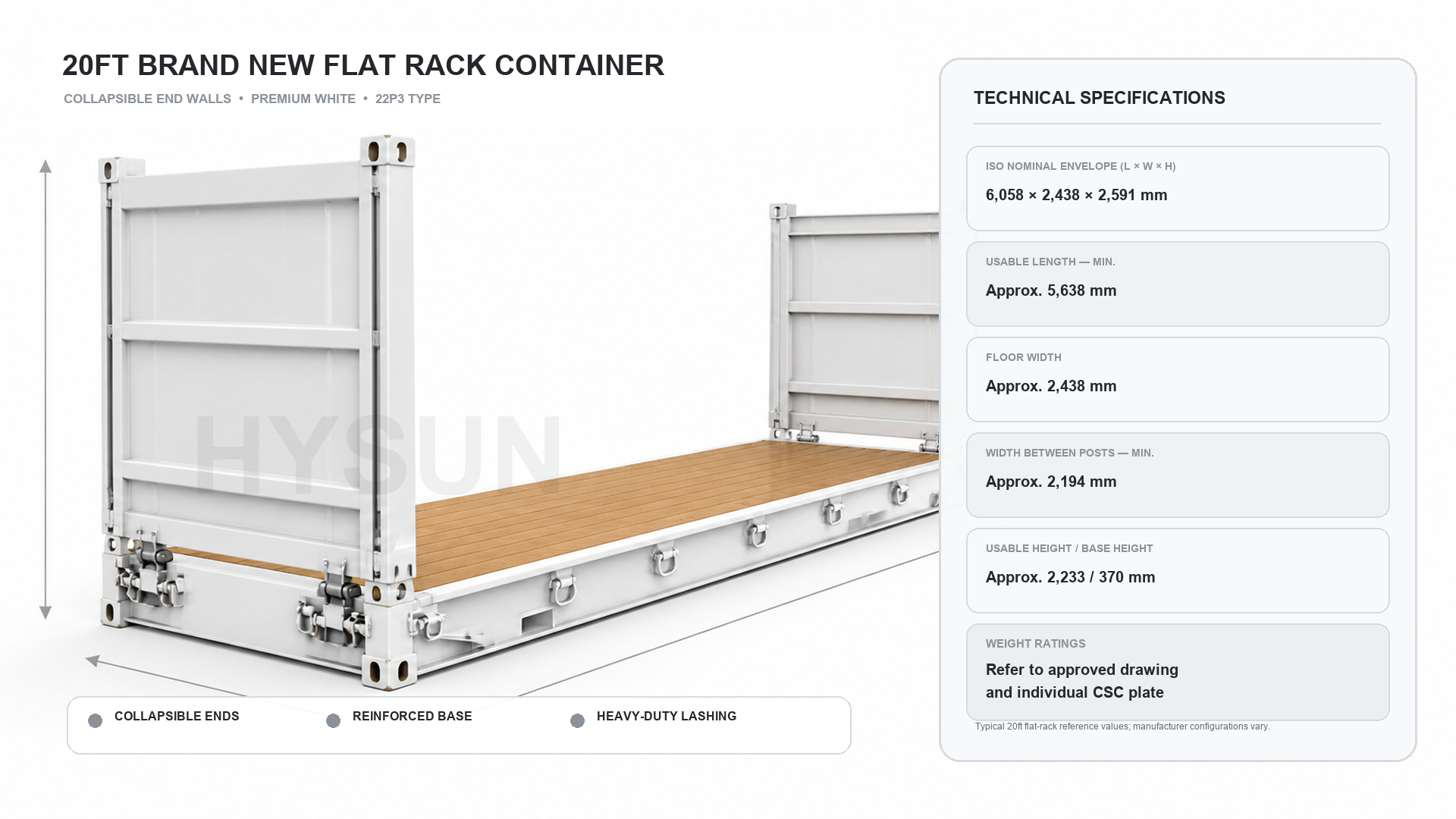

Technical Specifications
20ft Brand New Flat Rack Container
Factory New · Collapsible-End Flat Rack · Premium White
An open-sided special container designed for heavy, bulky, over-width and over-height cargo. Its reinforced base, upright collapsible end walls and multiple securing points provide a versatile platform for professional industrial transport.
General
●Type: 20ft Collapsible Flat Rack Container
●Condition: Brand New (Factory New, Never Used)
●Typical ISO Type: 22P3 / 20PC configuration
●Access: Open sides and open top
●End Walls: Upright and collapsible
Typical Dimensions
●ISO Nominal Envelope: 6,058 × 2,438 × 2,591 mm (L × W × H)
●Minimum Usable Length: Approx. 5,638 mm
●Floor Width: Approx. 2,438 mm
●Minimum Width Between Posts: Approx. 2,194 mm
●Usable Height / Base Height: Approx. 2,233 / 370 mm
Weight Ratings
●Maximum Gross Weight: Refer to the approved technical drawing and CSC plate
●Tare Weight: Refer to the approved technical drawing and CSC plate
●Payload Capacity: Refer to the approved technical drawing and CSC plate
Construction
●Base: Reinforced steel platform for concentrated cargo loads
●Floor: Heavy-duty timber cargo deck
●Corners: ISO standard corner fittings
●Securing: Multiple recessed lashing rings along the side rails and end structures
●Finish: Premium white marine-grade protective coating
Applications
●Heavy Machinery and Construction Equipment
●Industrial Components and Steel Structures
●Cable Reels, Vehicles and Oversized Cargo
●Over-Width, Over-Height or Special Project Cargo
Specifications shown are typical references. Final dimensions, materials, lashing ratings, weight ratings and certification are subject to the approved technical drawing and CSC plate.
Product description
Technical Specifications
| ISO Nominal Envelope L × W × H |
6,058 × 2,438 × 2,591 mm | Minimum Usable Length | Approx. 5,638 mm |
| Floor Width | Approx. 2,438 mm | Minimum Width Between Posts | Approx. 2,194 mm |
| Usable Height | Approx. 2,233 mm | Base Height | Approx. 370 mm |
| Maximum Gross Weight | Approved Drawing / CSC Plate | Tare Weight | Approved Drawing / CSC Plate |
| Payload Capacity | Approved Drawing / CSC Plate | Typical ISO Type | 22P3 / 20PC Configuration |
Flat-rack designs and ratings vary materially by manufacturer. Final data must follow the approved technical drawing and individual CSC plate.
Materials List
Structural Components
| S/N | Name | Description |
|---|---|---|
| 1 | ISO Corner Fittings | Standard corner fittings for lifting, securing and stacking. |
| 2 | Bottom Side Rails | Reinforced longitudinal steel members forming the main load platform. |
| 3 | Cross Members | Heavy-duty transverse support beams beneath the cargo deck. |
| 4 | Timber Cargo Deck | Durable heavy-duty floor surface for industrial cargo loading. |
| 5 | End Corner Posts | Upright structural posts integrated with the collapsible end walls. |
| 6 | End-Wall Beams | Horizontal reinforcement supporting each open end structure. |
| 7 | Folding Mechanisms | Heavy-duty hinges and locking components at the base of each end wall. |
| 8 | Lashing Fittings | Multiple recessed securing rings along side rails and end structures. |
| 9 | Protective Coating | Premium white marine-grade coating for corrosion and weather protection. |
Steel grades, member dimensions, floor specification, lashing capacity and coating system are manufacturer-specific and must follow the approved technical drawing.
Certificate
FAQ
What is the typical delivery time?
Lead time depends on quantity, production schedule and available stock. Please provide the required quantity and delivery location for confirmation.
Can the flat rack be used for an SOC shipment?
Yes, subject to carrier acceptance, route requirements, approved cargo securing, valid CSC documentation and confirmation of the exact equipment rating.
What cargo is suitable for a 20ft flat rack?
Typical cargo includes machinery, vehicles, cable reels, industrial components and other heavy or oversized loads requiring open-side or top access.
Can the end walls be folded?
Yes. This configuration uses collapsible end walls. Folding and cargo use must follow the manufacturer’s operating instructions and carrier requirements.
Which documents and payment terms are available?
The approved drawing, CSC information and available inspection documents can be confirmed with the order. Payment terms are stated in the official quotation or proforma invoice.
