40ft Standard Dry Shipping Container
Overview
Essential details
| Type: | 40ft Standard Dry Container |
| Capacity: | 67.7 CBM |
| Internal Dimensions(l x W x H)(mm): | 12032x2352x2393 |
| Color: | Beige/Red/Blue/Grey Customized |
| Material: | Steel |
| Logo: | Available |
| Price: | Discussed |
| Length (feet): | 40' |
| External Dimensions(l x W x H)(mm): | 12192x2438x2591 |
| Brand Name: | Hysun |
| Product Keywords: | 40 dry shipping container |
| Port: | Shanghai/Qingdao/Ningbo/Shanghai |
| Standard: | ISO9001 Standard |
| Quality: | Cargo-worthy Sea Worthy Standard |
| Certification: | ISO9001 |
Product description
|

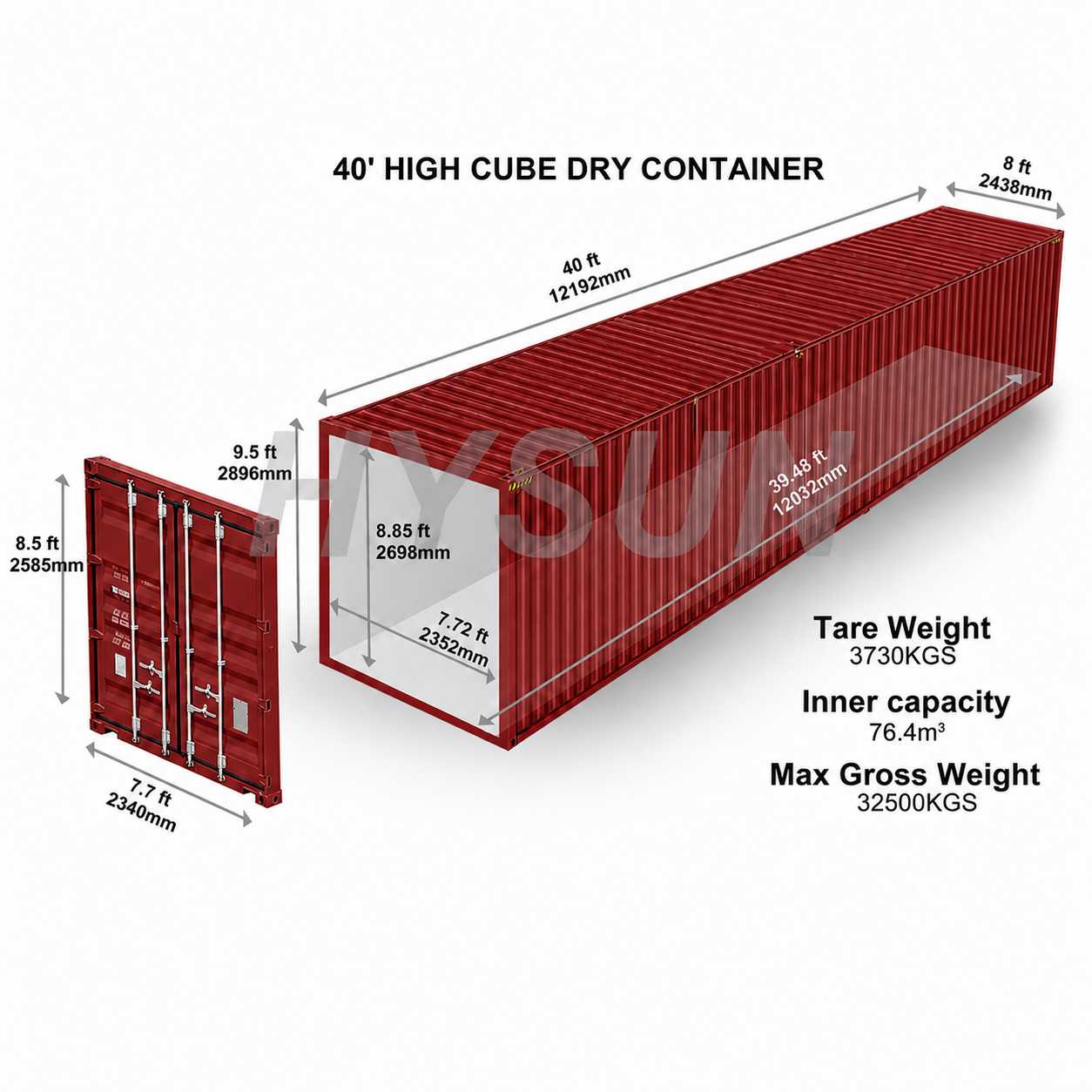

External Dimensions
(L x W x H)mm |
12192×2438×2591
|
Internal Dimensions
(L x W x H)mm |
12032x2352x2393
|
|
Door Dimensions
(L x H)mm |
2340×2280
|
Inner capacity
|
67.7 CBM
|
|
Tare Weight
|
3650KGS
|
Max Gross Weight
|
32500 KGS
|
Material list
|
S/N
|
Name
|
Desc
|
|
1
|
Corner
|
ISO standard corner, 178x162x118mm
|
|
2
|
Floor Beam for long side
|
Steel: CORTEN A, thickness: 4.0mm
|
|
3
|
Floor Beam for short side
|
Steel: CORTEN A, thickness: 4.5mm
|
|
4
|
Floor
|
28mm, intensity: 7260kg
|
|
5
|
Column
|
Steel: CORTEN A, thickness: 6.0mm
|
|
6
|
Inner column for back side
|
Steel: SM50YA + channel steel 13x40x12
|
|
7
|
Wall panel-long side
|
Steel: CORTEN A, thickness: 1.6mm+2.0mm
|
|
8
|
Wall panel-short side
|
Steel: CORTEN A, thickness: 2.0mm
|
|
9
|
Door Panel
|
Steel: CORTEN A, thickness: 2.0mm
|
|
10
|
Horizontal beam for door
|
Steel: CORTEN A, thickness: 3.0mm for standard container and 4.0mm for high cube container
|
|
11
|
Lockset
|
4 set container lock bar
|
|
12
|
Top Beam
|
Steel: CORTEN A, thickness: 4.0mm
|
|
13
|
Top panel
|
Steel: CORTEN A, thickness: 2.0mm
|
|
14
|
Paint
|
The paint system is guaranteed against corrosion and/or paint failure for a period of five (5) years.
Inside wall paint thickness: 75µ Outside Wall paint thickness: 30+40+40=110u Outside Roof paint thickness: 30+40+50=120u Chassis paint thickness: 30+200=230u |
Applications or special features
1. It can be made as the workshop , house for the battery group device, oil engine , water treatment equipment , electrical powder and so on as the working box ;
2. for convenient move and save cost, more and more customer try to fix their device, such as generator, compressor, on a container.
3. water proof and safe.
4. convenient for loading, lifting, moving.
5. can adjust the sizes, structures according to different devices requirements.
Packaging & delivery
Transport and ship with SOC style overworld
(SOC: Shipper own container)
CN:30+ports US:35+ports EU：20+ports
Production line
Our factory promotes lean production activities in an all-round way, opening the first step of forklift-free transportation and closing the risk of air and ground transportation injury in workshop, also creating a series of lean improvement achievements such as streamlined production of container steel parts etc.… It is known as a “cost-free, cost effective” model factory for lean production
Output
Every 3 mins to get a container from automatic production line.
Industrial Storage is Easy With Containers
Industrial Equipment Storage is perfectly suited for the Shipping Containers. With a marketplace full of easy add-on products that
make it quick and easy to adapt.
Building a Home with Shipping Containers
One of the most popular applications these days is to build your dream home with re-purposed Shipping Containers. Save time and
money with these highly adaptable units.
Certificate
FAQ
Q: What about delivery date?
A: This is basis on the quantity. For order less than 50 units, shipment date:3-4 weeks. For large quantity, pls check with us.
Q: If we have cargo in China, I want order one container to load them, how to operate it?
A: If you have cargo in China, you only pick our container up instead of shipping company's container, and then load your goods, and arranging clearance custom, and export it like normally do. It's called SOC container. We have rich experience in handling it.
Q: What size of container can you provide ?
A: We provide10'GP,10'HC, 20'GP, 20'HC, 40'GP, 40'HC, 45'HC and 53'HC, 60’HC ISO shipping container. Also customized size is acceptable.
Q: What is your terms of packing?
A: It is transporting complete container by container ship.
Q: What is your terms of payment?
A: T/T 40% down payment before production and T/T 60% balance before delivery. For big order, pls contact us to negations.
Q: What certificate can you provide us ?
A: We provide the CSC certificate of ISO shipping container.
