40ft HC High Cube Brand New Shipping Container
Brand New · High Cube

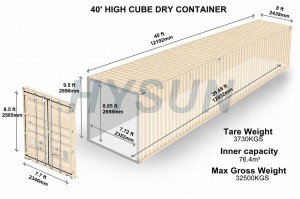

40ft HC High Cube Container
A brand new 40ft High Cube dry container with an extra 30 cm of interior height. Built for dependable performance in global freight transport, secure storage, and industrial applications. Fully ISO and CSC certified.
EXTERNAL LENGTH
40 ft 12,192 mm
EXTERNAL HEIGHT (HC)
9 ft 6 in 2,896 mm
INTERNAL CAPACITY
Approx. 76.4 m³ 2,698 cu ft
Typical Technical Specifications
Built for superior cubic capacity
Dimensions and Openings
External: 12,192 × 2,438 × 2,896 mm (40ft × 8ft × 9ft 6in)
Internal: Approx. 12,032 × 2,352 × 2,698 mm
Door Opening: Approx. 2,340 × 2,585 mm
Internal Capacity: Approx. 76.4 m³ / 2,698 cu ft
Weight and Construction
Maximum Gross Weight: 30,480 kg / 67,200 lbs
Tare Weight: Approx. 3,730–3,800 kg / 8,223–8,378 lbs
Maximum Payload: Approx. 26,680–26,750 kg / 58,822–58,977 lbs
Structure: Corten steel or equivalent weathering steel
Condition: Brand New (One-Trip)
Typical Applications
● International shipping and freight transport
● Secure on-site storage for tools, equipment and materials
● Export and import cargo logistics
● Construction sites and industrial storage
Dimensions and capacity shown above are typical reference values for a 40ft High Cube Container. Actual dimensions, tare weight, payload, maximum gross weight, condition and CSC validity must be confirmed against the individual container, inspection report, approved technical drawing and CSC plate.
Technical Specifications
40ft HC High Cube Container
Brand New · High Cube · ISO & CSC Certified
A brand new 40ft High Cube dry container offering an additional 30 cm of interior height compared to standard containers, providing approximately 76.4 m³ of cubic capacity for bulky and oversized cargo. Built from high-strength Corten steel with a 28mm marine-grade plywood floor, this container is fully ISO and CSC certified for international shipping. Designed for dependable performance in global freight transport, secure storage, and industrial applications.
General
● Type: 40ft High Cube Dry Container (40HC)
● Condition: Brand New (One-Trip)
● ISO Code: 45G1
● Certification: ISO 1496-1 · CSC Plated
● Door Configuration: Standard double rear cargo doors
● Cosmetic Condition: Factory-fresh, no cosmetic wear
Typical Dimensions and Capacity
● External: 12,192 × 2,438 × 2,896 mm (40ft × 8ft × 9ft 6in)
● Internal: Approx. 12,032 × 2,352 × 2,698 mm
● Door Opening: Approx. 2,340 × 2,585 mm
● Internal Capacity: Approx. 76.4 CU.M / 2,698 CU.FT
Reference Weight
● Reference Maximum Gross: 30,480 kg / 67,200 lbs
● Reference Tare: Approx. 3,730–3,800 kg / 8,223–8,378 lbs
● Reference Payload: Approx. 26,680–26,750 kg / 58,822–58,977 lbs
High Cube Features
● Extra Height: 30 cm taller than standard containers for superior cubic capacity
● Corten Steel: High-strength weathering steel construction for durability
● Marine Floor: 28 mm thick marine-grade plywood flooring
● Weather Protection: Wind and watertight construction with durable door seals
Applications
● International Shipping and Freight Transport
● Secure On-Site Storage for Tools and Equipment
● Export and Import Cargo Logistics
● Construction Sites and Industrial Storage
Photographs and specifications are representative. Actual condition, markings, dimensions, weights and CSC validity must be confirmed for the individual container.
Product description
40ft HC Reference Specifications
| External Dimensions (L × W × H) mm |
12,192 × 2,438 × 2,896 mm (40ft × 8ft × 9ft 6in) |
Internal Dimensions (L × W × H) mm |
Approx. 12,032 × 2,352 × 2,698 mm |
| Door Opening (W × H) mm |
Approx. 2,340 × 2,585 mm | Internal Capacity | Approx. 76.4 CU.M / 2,698 CU.FT |
| Reference Tare Weight | Approx. 3,730–3,800 kg / 8,223–8,378 lbs | Reference Max Gross | 30,480 kg / 67,200 lbs |
| Reference Payload | Approx. 26,680–26,750 kg / 58,822–58,977 lbs | ISO Code | 45G1 |
| Structure | Corten steel | Floor | 28 mm marine-grade plywood |
Reference values only. Actual tare, payload, maximum gross weight and CSC status must be verified from the individual container's CSC plate.
Materials List
Structural Overview – High Cube Container
| S/N | Component | Brand New Container Condition Requirement |
|---|---|---|
| 1 | Corner Castings | Serviceable for normal lifting, handling and stacking operations |
| 2 | Corner Posts | Structurally serviceable; factory-new condition |
| 3 | Side and End Panels | Factory-new condition; no dents, scratches or repairs |
| 4 | Roof Panel | Watertight with no leakage; factory-new condition |
| 5 | Door Seals | Serviceable for wind and watertight protection |
| 6 | Cargo Doors | Operational and capable of closing and securing correctly |
| 7 | Locking Gear | Locking bars, handles and retainers remain operational |
| 8 | Cargo Floor | 28 mm marine-grade plywood; factory-new condition |
| 9 | Understructure | Cross members and supporting structure operationally serviceable |
| 10 | CSC / ISO Compliance | Valid CSC plate and ISO 1496-1 certification |
This table describes general brand new container condition expectations. Final acceptance is subject to inspection of the individual container.
Certificate
FAQ
What is a High Cube container?
A High Cube (HC) container is a standard dry container with an extra 30 cm of interior height, providing superior cubic capacity for bulky and oversized cargo. External height is 9ft 6in (2,896 mm) compared to 8ft 6in (2,591 mm) for standard containers.
What is the difference between HC and standard container?
A High Cube container is 30 cm (1 foot) taller than a standard container, providing additional vertical clearance for bulky cargo. The ISO code for 40ft HC is 45G1, while standard 40ft GP is 42G1.
What is the ISO code for a 40ft HC container?
The 40ft High Cube container has the ISO code 45G1.
What certifications does a new HC container have?
New High Cube containers are fully ISO 1496-1 certified and CSC plated, meeting international standards for safe shipping and transport. They are constructed from Corten steel with marine-grade plywood flooring.
Can a High Cube container be used for storage?
Yes. High Cube containers are ideal for secure on-site storage of tools, equipment, machinery, building materials, and other bulky goods. The extra height makes it easier to store taller items.
