45HC High Cube Brand New Shipping Container High volume cargo shipping container
Brand New · High Cube · High Volume

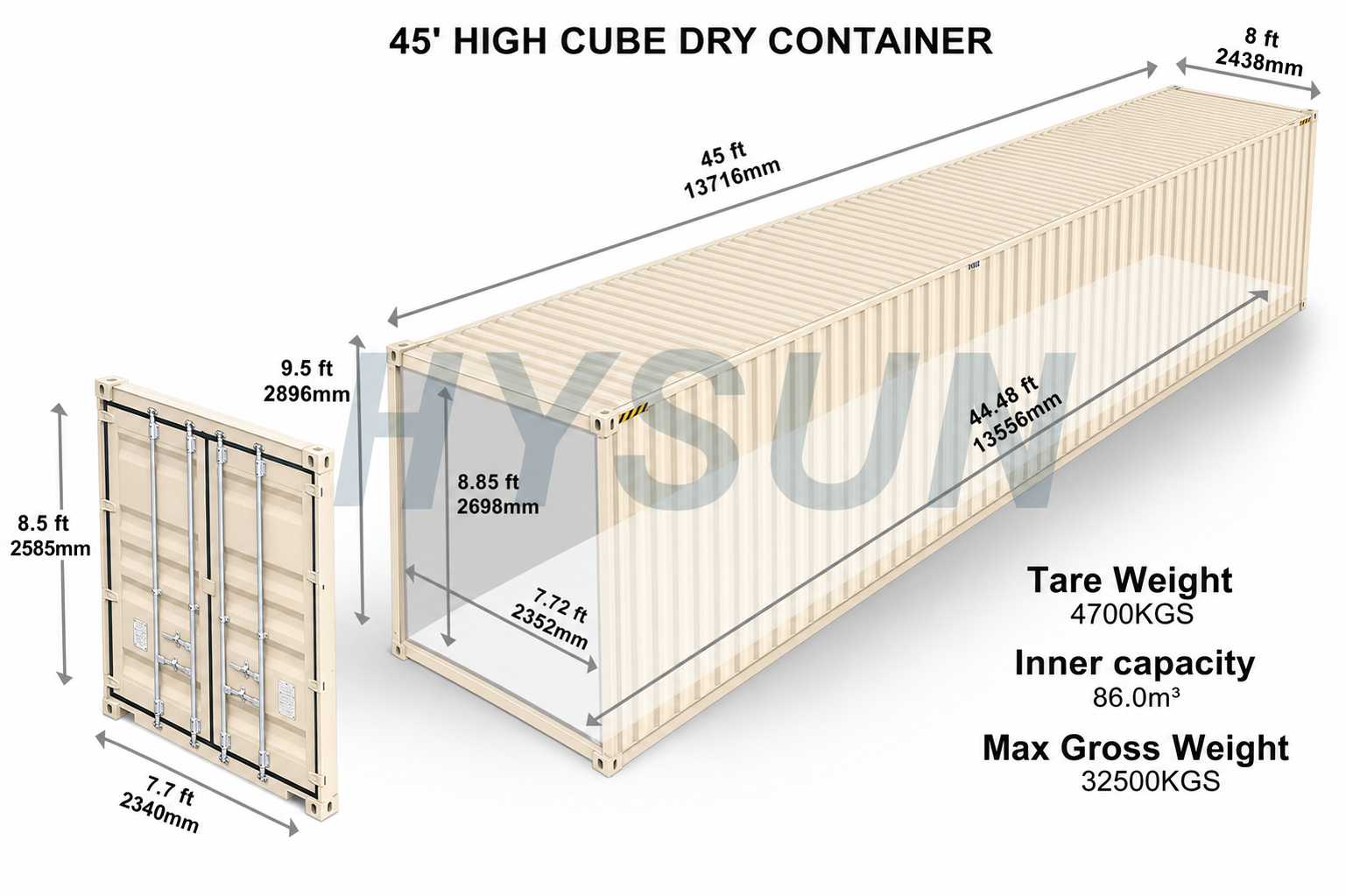

45ft HC High Cube Container
A brand new 45ft High Cube container with approximately 1.5 meters of additional internal length. Built for maximum volume efficiency in global freight transport, retail logistics, and e-commerce fulfillment. Fully ISO and CSC certified.
EXTERNAL LENGTH
45 ft 13,716 mm
EXTERNAL HEIGHT (HC)
9 ft 6 in 2,896 mm
INTERNAL CAPACITY
Approx. 86 m³ 3,040 cu ft
Typical Technical Specifications
Maximum volume efficiency for high-volume cargo
Dimensions and Openings
External: 13,716 × 2,438 × 2,896 mm (45ft × 8ft × 9ft 6in)
Internal: Approx. 13,556 × 2,352 × 2,698 mm
Door Opening: Approx. 2,340 × 2,585 mm
Internal Capacity: Approx. 86 CBM / 3,040 CU.FT
Weight and Construction
Maximum Gross Weight: 32,500 kg / 71,650 lbs
Tare Weight: Approx. 4,820 kg / 10,626 lbs
Maximum Payload: Approx. 27,680 kg / 61,024 lbs
Structure: Corten steel or equivalent weathering steel
Condition: Brand New
Typical Applications
● International shipping and freight transport
● Retail and e-commerce logistics
● Furniture and home furnishing exports
● Palletized consumer goods and large-volume warehousing
Dimensions and capacity shown above are typical reference values for a 45ft High Cube Container. Actual dimensions, tare weight, payload, maximum gross weight, condition and CSC validity must be confirmed against the individual container, inspection report, approved technical drawing and CSC plate.
Technical Specifications
45ft HC High Cube Container
Brand New · High Cube · ISO & CSC Certified
A brand new 45ft High Cube container offering approximately 1.5 meters of additional internal length compared to a standard 40ft container, providing approximately 86 m³ of cubic capacity for bulky, lightweight, and palletized cargo.[reference:6][reference:7] The High Cube (HC) configuration provides an extra 30 cm of interior height compared to standard containers, offering superior volume efficiency. Built from high-strength Corten steel with a 28mm marine-grade plywood floor, this container is fully ISO and CSC certified for international shipping. Designed for maximum volume efficiency in global freight transport, retail logistics, and e-commerce fulfillment.[reference:8]
General
● Type: 45ft High Cube Dry Container (45HC)
● Condition: Brand New
● ISO Code: 45G1
● Certification: ISO 1496-1 · CSC Plated
● Door Configuration: Standard double rear cargo doors
● Cosmetic Condition: Factory-fresh, no cosmetic wear
Typical Dimensions and Capacity
● External: 13,716 × 2,438 × 2,896 mm (45ft × 8ft × 9ft 6in)
● Internal: Approx. 13,556 × 2,352 × 2,698 mm
● Door Opening: Approx. 2,340 × 2,585 mm
● Internal Capacity: Approx. 86 CU.M / 3,040 CU.FT
Reference Weight
● Reference Maximum Gross: 32,500 kg / 71,650 lbs
● Reference Tare: Approx. 4,820 kg / 10,626 lbs
● Reference Payload: Approx. 27,680 kg / 61,024 lbs
High Cube Features
● Extended Length: Approximately 1.5 meters additional internal length vs. 40ft containers
● Extra Height: 30 cm taller than standard containers for superior cubic capacity
● Corten Steel: High-strength weathering steel construction for durability
● Flooring: 28 mm marine-grade plywood
Applications
● International Shipping and Freight Transport
● Retail and E-Commerce Logistics
● Furniture and Home Furnishing Exports
● Palletized Consumer Goods and Large-Volume Warehousing
Photographs and specifications are representative. Actual condition, markings, dimensions, weights and CSC validity must be confirmed for the individual container.
Product description
45ft HC Reference Specifications
| External Dimensions (L × W × H) mm |
13,716 × 2,438 × 2,896 mm (45ft × 8ft × 9ft 6in) |
Internal Dimensions (L × W × H) mm |
Approx. 13,556 × 2,352 × 2,698 mm |
| Door Opening (W × H) mm |
Approx. 2,340 × 2,585 mm | Internal Capacity | Approx. 86 CU.M / 3,040 CU.FT |
| Reference Tare Weight | Approx. 4,820 kg / 10,626 lbs | Reference Max Gross | 32,500 kg / 71,650 lbs |
| Reference Payload | Approx. 27,680 kg / 61,024 lbs | ISO Code | 45G1 |
| Structure | Corten steel | Floor | 28 mm marine-grade plywood |
Reference values only. Actual tare, payload, maximum gross weight and CSC status must be verified from the individual container's CSC plate.
Materials List
Structural Overview – High Cube Container
| S/N | Component | Brand New Container Condition Requirement |
|---|---|---|
| 1 | Corner Castings | Serviceable for normal lifting, handling and stacking operations |
| 2 | Corner Posts | Structurally serviceable; factory-new condition |
| 3 | Side and End Panels | Factory-new condition; no dents, scratches or repairs |
| 4 | Roof Panel | Watertight with no leakage; factory-new condition |
| 5 | Door Seals | Serviceable for wind and watertight protection |
| 6 | Cargo Doors | Operational and capable of closing and securing correctly |
| 7 | Locking Gear | Locking bars, handles and retainers remain operational |
| 8 | Cargo Floor | 28 mm marine-grade plywood; factory-new condition |
| 9 | Understructure | Cross members and supporting structure operationally serviceable |
| 10 | CSC / ISO Compliance | Valid CSC plate and ISO 1496-1 certification |
This table describes general brand new container condition expectations. Final acceptance is subject to inspection of the individual container.
Certificate
FAQ
What is a 45ft High Cube container?
A 45ft High Cube (45HC) container is an extended-length ISO shipping container offering approximately 1.5 meters of additional internal length compared to a standard 40ft container, providing superior cubic capacity for bulky, lightweight, and palletized cargo.[reference:9] External height is 9ft 6in (2,896 mm), with internal capacity of approximately 86 m³.
What is the difference between 45HC and 40HC?
A 45HC container is approximately 1.5 meters longer than a 40HC container, providing additional cubic capacity of approximately 10 m³.[reference:10] While both have the same height (9ft 6in) and width, the 45HC offers significantly more volume for bulky cargo, making it ideal for retail logistics and e-commerce fulfillment.[reference:11]
What is the ISO code for a 45ft HC container?
The 45ft High Cube container has the ISO code 45G1.[reference:12][reference:13]
What certifications does a new 45HC container have?
New 45HC containers are fully ISO 1496-1 certified and CSC plated, meeting international standards for safe shipping and transport.[reference:14] They are constructed from Corten steel with marine-grade plywood flooring and are suitable for intermodal freight transportation.
What are typical applications for a 45HC container?
45HC containers are ideal for international shipping and freight transport, retail and e-commerce logistics, furniture and home furnishing exports, and palletized consumer goods.[reference:15] The extra length allows for more efficient loading of long or bulky cargo, reducing the need for multiple containers.
-
